CZTV VALVE .CHINA
Valve type
|
Ball valve |

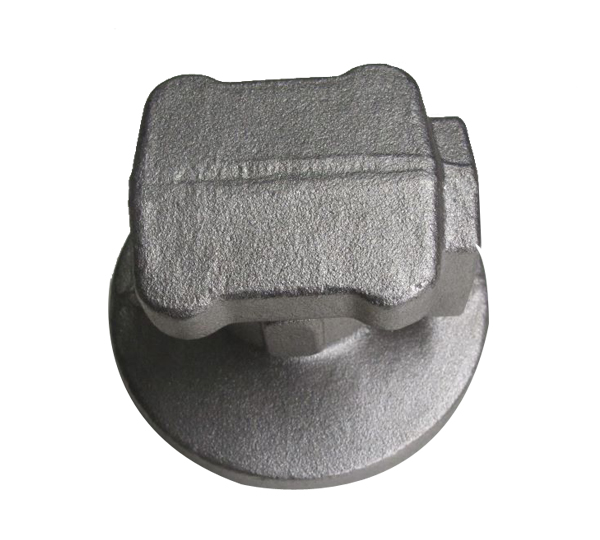

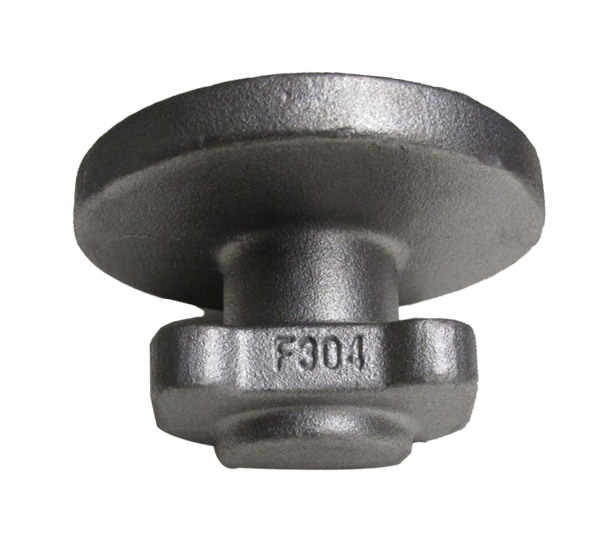

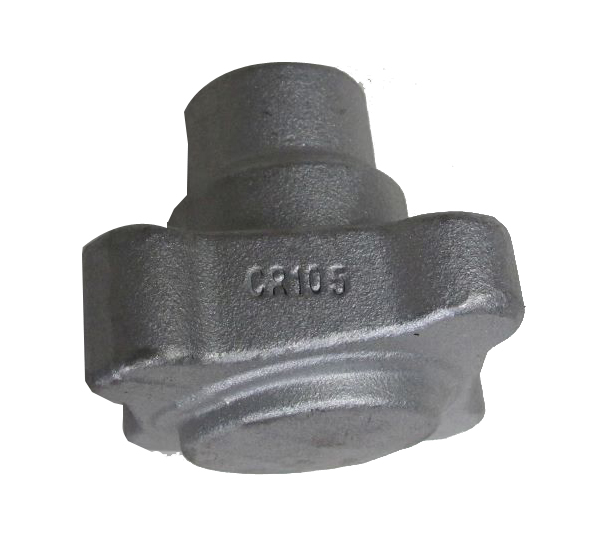

Valve parts
|
Body & bonnet |
CLASS
|
NPS 1/2 ~ NPS 12 DN 15 ~ DN 300 |
SIZE
|
CL150 ~CL2500 |
Design
|
API 608, API 6D, ASME B16.34 |
Marking
|
MSS SP-25 |
P/T rating
|
ASME B16.34 |
Face to face
|
ASME B16.10 |
End to end
|
Manufacturer std or ASME B16.10 |
Socket welding
|
ASME B16.11 |
Screwed ends
|
ASME B1.20.1 |
Flange ends
|
ASME B16.5 |
Butt welding
|
ASME B16.25 |
Bonnet type
|
Side entry (Split body) Top entry |
Structure
|
Floating ball Trunnion mounted ball |
Material
|
A105, LF2, F11, F22，F91, F304/304L, F316/316L, F321，F347, F51, Monel, Inconel etc. |
