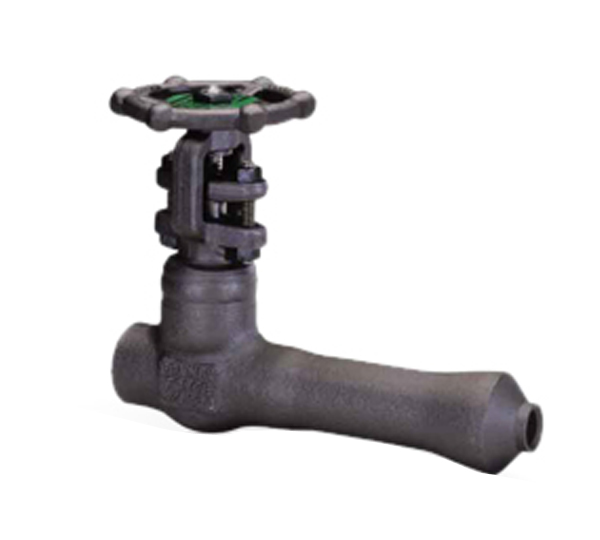

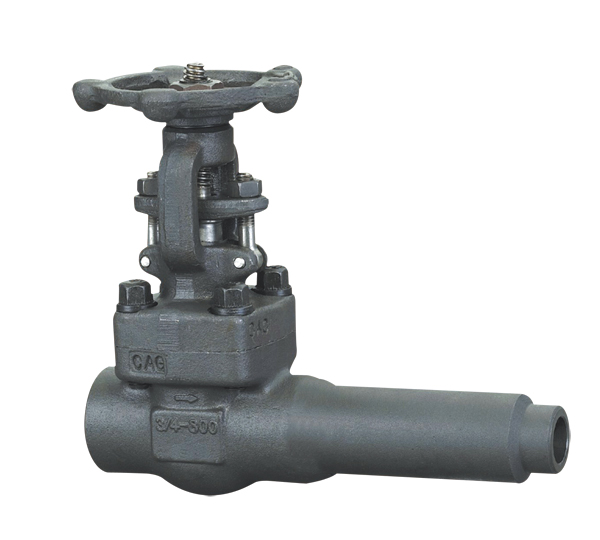

extended body valve

  • Category:Extended body valves
  • Name:extended body valve
  • Tag:extended body valve
Introduce
Applicable products range
Valve Type
Gate valve
Globe valve
SIZE
NPS 1/2 ~ NPS 2
DN 15 ~ DN 50
CLASS
CL800 ~CL2500
Applicable standards
Design
ASME B16.34,API 602
Inspection & testing
API 598
Marking
MSS SP-25
P/T rating
ASME B16.34
Applicable standards
End to end
Manufacturer std or ASME B16.10
Socket welding
ASME B16.11
Butt welding
ASME B16.25
Screwed ends
ASME B1.20.1
Products structure
Bonnet type
Bolted bonnet (BB), Welded bonnet (WB)
Structure
Swing type
Lift type (piston)
Ball type
Material
Body materia
A105, F11, F22,F91, F304/304L, F316/316L, F321,F347 etc.
