CZTV VALVE .CHINA
SIZE
|
NPS 1/2 ~ NPS 8 |
| DN 15 ~ DN 200 |
CLASS
|
CL150 ~CL1500 |
Design
|
API 608 - ISO 17292 – API 6D - ASME B16.34 |
Inspection & testing
|
API 598 |
Marking
|
MSS SP-25 |
P/T rating
|
ASME B16.34 |
Fugitive emission
|
ISO 15848 |
Face to face
|
ASME B16.10 |
End to end
|
Manufacturer std or ASME B16.10 |
Socket welding
|
ASME B16.11 |
Screwed ends
|
ASME B1.20.1 |
Flange ends
|
ASME B16.5 |
Butt welding
|
ASME B16.25 |
Bonnet type
|
Side entry（2-pcs, 3-pcs split body） |
Structure
|

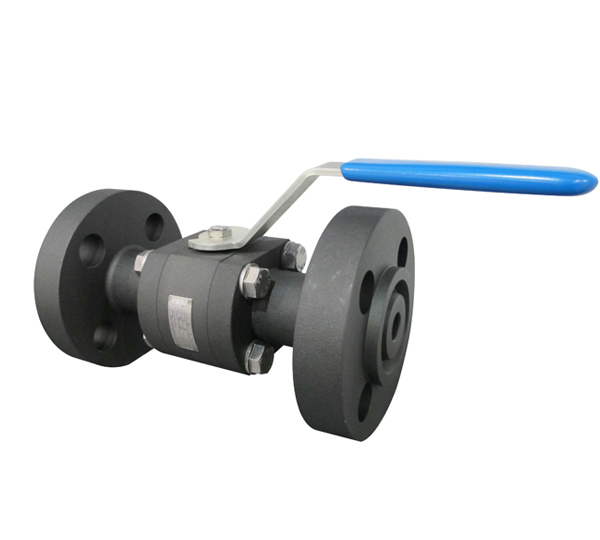

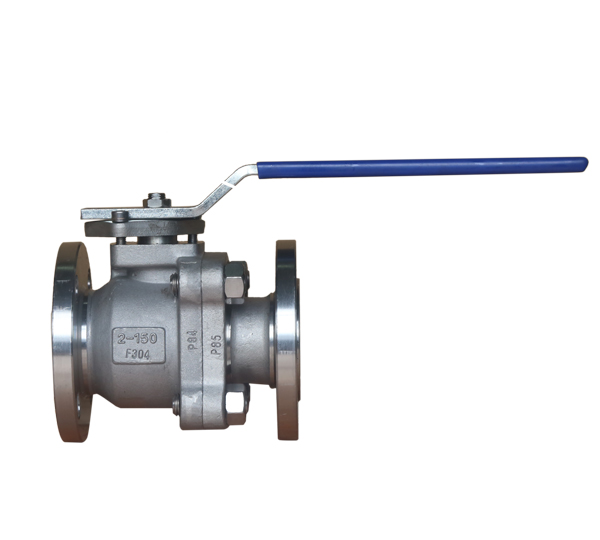

Floating ball Full bore/Reduced bore |
Features
|
Fire safe, Anti-static, Anti-blowout |
Body material
|
A105, LF2, F304/304L, F316/316L, F51, Monel, Inconel etc. |
Seat material
|
Soft seat: PTFE，RPTFE，Nylon, PEEK Metal seat: STL, HVOF coating |
