CZTV VALVE .CHINA
Valve Type
|

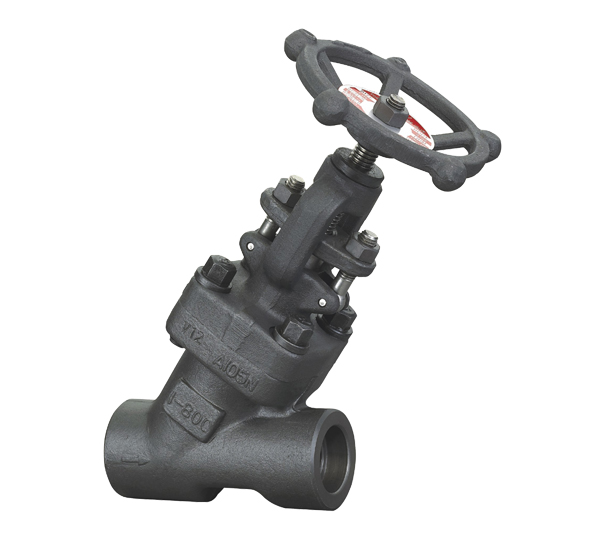

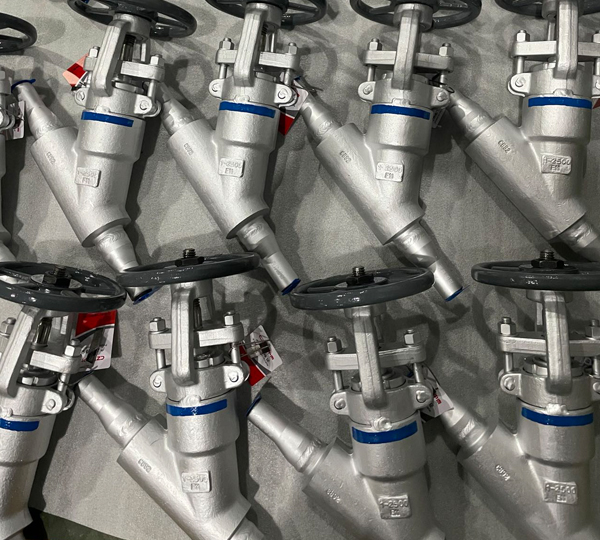

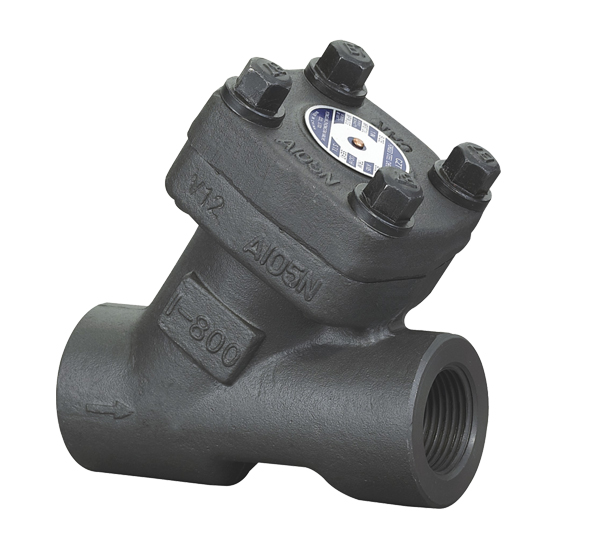

Globe valve Check valve |
SIZE
|
NPS 1/2 ~ NPS 6 |
| DN 15 ~ DN 150 |
CLASS
|
CL150 ~CL4500 |
Design
|
API 602 - ISO 15761 - ASME B16.34 |
Inspection & testing
|
API 598 |
Marking
|
MSS SP-25 |
P/T rating
|
ASME B16.34 |
Fugitive emission
|
N.A. |
Face to face
|
ASME B16.10 |
End to end
|
Manufacturer std or ASME B16.10 |
Socket welding
|
ASME B16.11 |
Screwed ends
|
ASME B1.20.1 |
Flanged
|
ASME B16.5 |
Butt welding
|
ASME B16.25 |
Bonnet type
|
Bolted bonnet (BB) Welded bonnet（WB） Pressure seal bonnet (PSB) |
Structure
|
Swing type Lift type (piston) Ball type |
Features
|
Renewable seat |
Body materia
|
A105, LF2, F11, F22，F91, F304/304L, F316/316L, F321，F347, F51, Monel, Inconel etc. |
