Valve Type
|

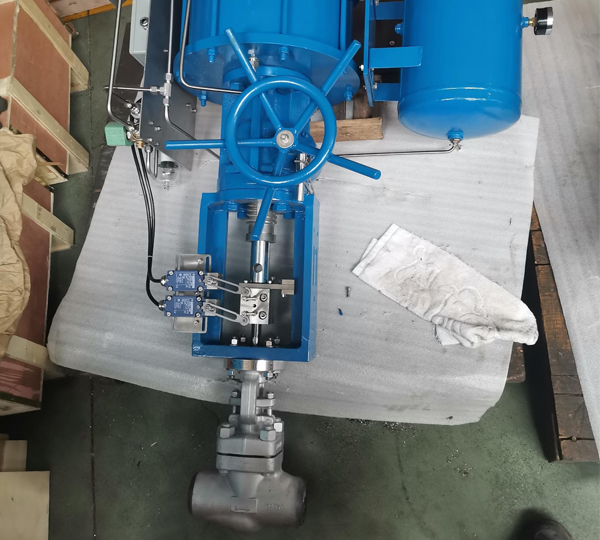

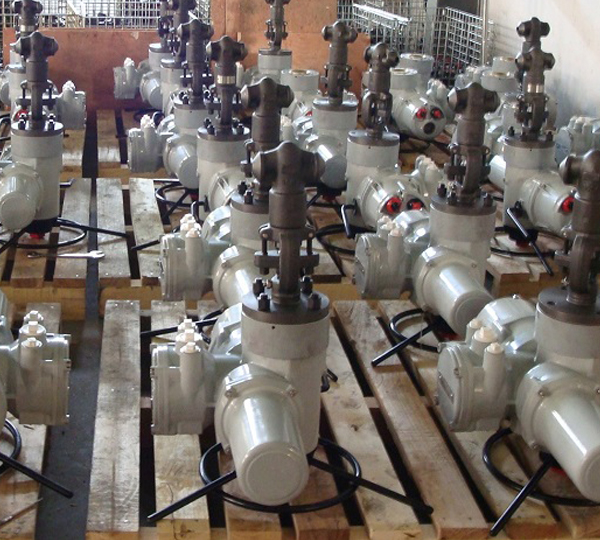

Pneumatic actuated Electrical actuated |
SIZE
|
NPS 1/2 ~ NPS 6 |
| DN 15 ~ DN150 |
CLASS
|
CL150 ~CL4500 |
Valve Type
|
Gate valve, Globe valve |
Design
|
API 602 - ISO 15761 - ASME B16.34 |

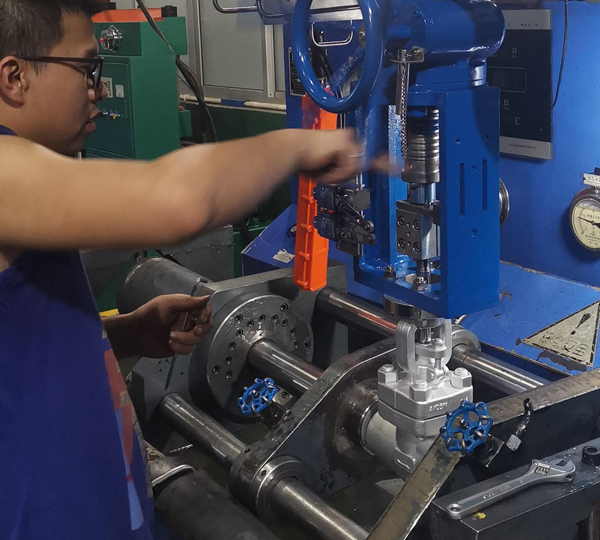

Inspection & testing
|
API 598 |
Marking
|
MSS SP-25 |
P/T rating
|
ASME B16.34 |
Fugitive emission
|
API 624 - ISO 15848 |
Face to face
|
ASME B16.10 |
End to end
|
Manufacturer std or ASME B16.10 |
Socket welding
|
ASME B16.11 |
Screwed ends
|
ASME B1.20.1 |
Flange ends
|
ASME B16.5 |
Butt welding
|
ASME B16.25 |
Bonnet type
|
Bolted bonnet (BB) Welding bonnet（WB） |
Features
|
Outside Screw & Yoke（OS&Y）, Renewable seat |
Actuator
|

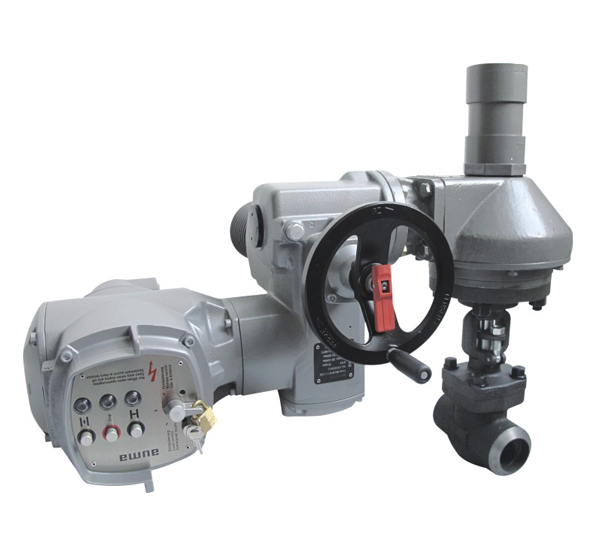

Auma, Rotork, Bettis etc. per clients request |
Body materia
|
A105, LF2, F11, F22，F91, F304/304L, F316/316L, F321，F347, F51, Monel, Inconel etc. |
