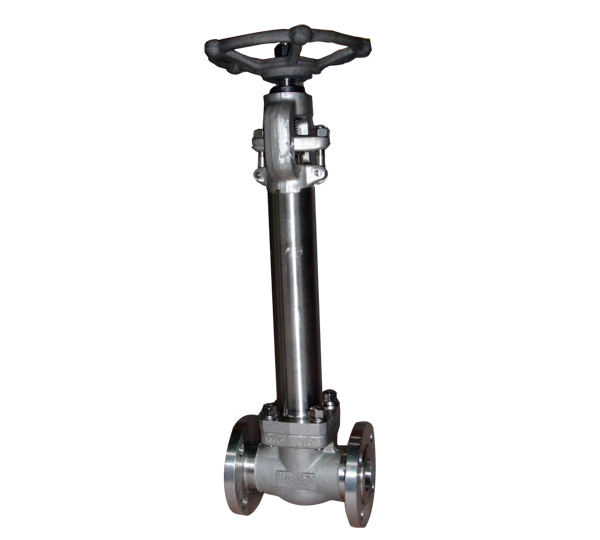

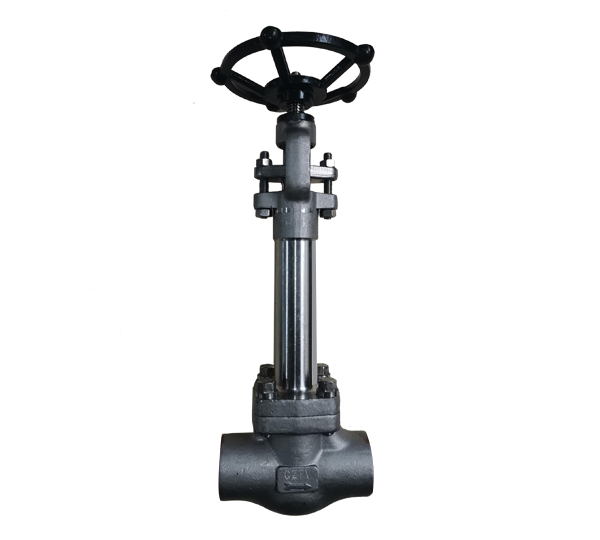

cryogenic valve

Category：Cryogenic valves (Gate, Globe & Check)
Name：cryogenic valve
Tag：cryogenic valve

Introduce

Applicable products range

Valve Type

Gate, Globe, Check

SIZE	NPS 1/2 ~ NPS 6
	DN 15 ~ DN150

CLASS	CL150 ~CL2500
Temp.	-196℃ ~ 200℃

Applicable standards

Design	ASME B16.34，BS6364
Inspection & testing	API 598, BS6364
Marking	MSS SP-25
P/T rating	ASME B16.34
Fugitive emission	API 624、ISO 15848

Applicable standards

Face to face	ASME B16.10
End to end	Manufacturer std or ASME B16.10
Socket welding	ASME B16.11
Screwed ends	ASME B1.20.1
Flanged	ASME B16.5
Butt welding	ASME B16.25

Products structure

Bonnet type	Bolted bonnet (BB)
Structure	Integral extended bonnet

Material

Body material

LF2, F304/304L, F316/316L
