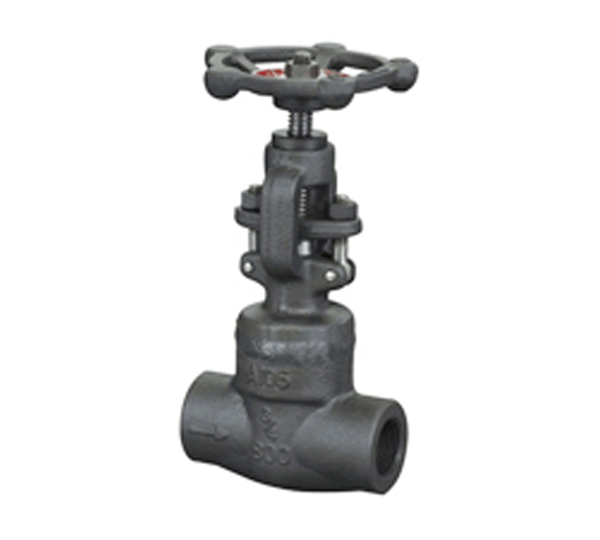

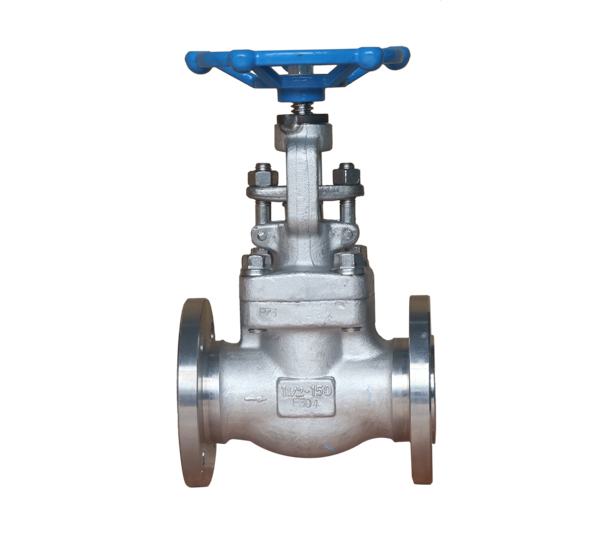

globe valve

  • Category:Forged steel globe valves
  • Name:globe valve
  • Tag:globe valve
Introduce
Applicable products range
SIZE
NPS 1/2 ~ NPS 6
DN 15 ~ DN 150
CLASS
CL150 ~CL2500
Applicable standards
Design
API 602 - ISO 15761 - ASME B16.34
Inspection & testing
API 598
Marking
MSS SP-25
P/T rating
ASME B16.34
Fugitive emission
API 624 - ISO 15848
Applicable standards
Face to face
ASME B16.10
End to end
Manufacturer std or ASME B16.10
Socket welding
ASME B16.11
Screwed ends
ASME B1.20.1
Flanged
ASME B16.5
Butt welding
ASME B16.25
Products structure
Bonnet type
Bolted bonnet (BB)
Welded bonnet(WB)
Features
Outside Screw & Yoke(OS&Y), Solid wedge,
Renewable seat
Material
Body material
A105, LF2, F11, F22,F91, F304/304L, F316/316L, F321,F347, F51, Monel, Inconel etc.
